SAM9-L9261 DEVELOPMENT BOARD FOR AT91SAM9260 MICROCONTROLLER

INFO:

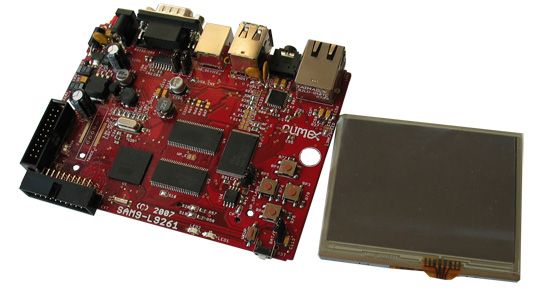

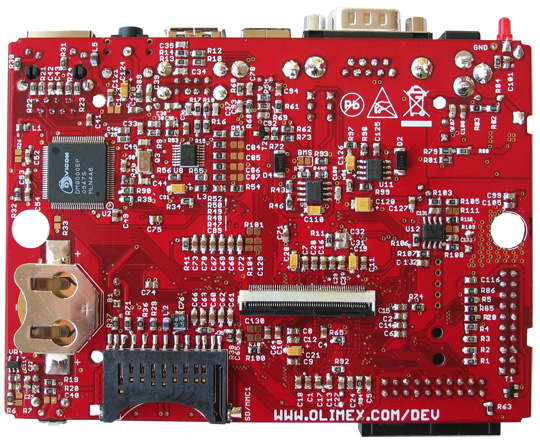

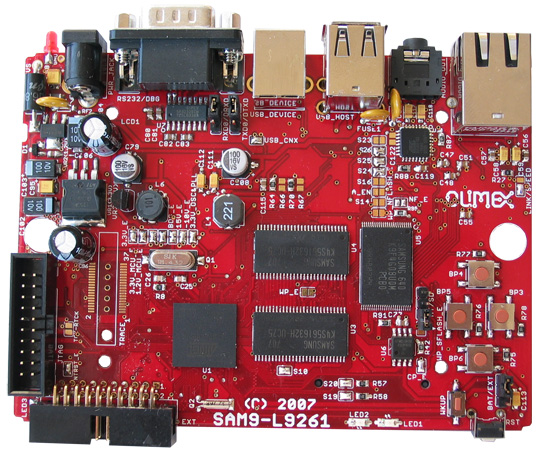

SAM9-L9261 is development platform with ARM9 microcontroller, TFT LCD 3.5" 320x240 pixels with TOUCHSCREEN, 64MB SDRAM and 512MB NAND Flash. The board have Ethernet 100Mbit controller, USB host, USB device, RS232 and 40 pin extension port with all unused SAM9261 ports available for add-on boards. SAM9-L9261 have waste amount of Flash and RAM and runs Linux, WindowsCE and other RTOS natively. RTC clock is backup with 3V Li battery.

FEATURES:

• MCU: AT91SAM9261 16/32 bit ARM9™ 180MHz operation
• standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
• TFT LCD 3.5" 320x240 pixels with TOUCH SCREEN supported by Windows CE 6.0
• 64 MB SDRAM
• 512MB NAND Flash (seen in Linux as silicon drive)
• Ethernet 100Mbit connector
• USB host and USB device connectors
• RS232 interface and drivers
• SD/MMC card connector
• one user button and one reset button
• one power and two status LEDs
• on board voltage regulator 3.3V with up to 800mA current
• single power supply: 5V DC required
• power supply filtering capacitor
• 18.432 Mhz crystal
• extension header
• PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print
• Dimensions: 100 x 80 mm (3.94 x 3.15")

DOCUMENTS:

• SAM9-L9261.pdf users manual
• LCD datasheet
• LCD video controller IC datasheet

• SAM9-L9261 schematic

• Linux 2.6 source and binaries on CD
• evtest.tgz, fbtest.tgs Simple Linux examples for SAM9-L9261. Also available on the CD.
• linux-2.31-rc8-olimex-patches.zip Linux kernel patches for SAM9-L9260 and SAM9-L9261. Also includes T.V.R.Prasad's kernel driver for SAM9-L9260 and MOD-NOKIA6610.
• u-boot-olimex-patches-20090717.tgz U-Boot patches for SAM9-L9260 and SAM9-L9261.

ORDERING CODES:
		SAM9-L9261 - assembled and tested board with Linux 2.6 installed
