2.3 Maintenance Support Organization Model

The maintenance support organization consists of many different actors and components that are geographically distributed. Actors at different locations, with different roles, will behave differently depending on their individual goals. Managers of the maintenance support organization has certain strategic goals and financial criteria, while the operators using the equipment has a different agenda focusing on solving the task at hand while relying on the equipment to be operational. In between there are a number of tactical level maintenance managers working to allocate resources to achieve the best possible operational availability, at the lowest cost and risk.

The geographical distribution of actors and components adds complexity, since the available maintenance options and lead-times for any actor and component will depend on where they are located. There may also be limitations on the availability of information services and/or bandwidth, which will mean that not all actors have the same information upon which to base their decisions. This means that the overall performance of the maintenance organization is affected by its specific geographic distribution, and specifically by the available distribution and communication channels within the organization.

The focus in this document is on tactical level maintenance planning. As defined in Section 1.2.1, tactical level planning concerns effective utilization of available resources and optimization of maintenance policies. The purpose of an organizational model in this context is to be able to study the effect of different resource allocation and maintenance policy decisions, in terms of operational availability, cost and risk. In this section, the functionality that is required from a maintenance organization model is identified, and an organization model design is then proposed and discussed.

2.3.1 Identified Required Functionality

Most of the requirements on a maintenance support organization model have been touched upon in the introduction to this section. There are six key requirements, which can be summarized as follows:

1.
Resources: The maintenance organization model must be able to describe the resources available at each location. For the discussion in this section, a hypothetical maintenance organization is modeled, where resources constitute maintenance staff, equipment units and spares in the form of equipment components. In a scenario where the model is to be used to model an actual maintenance organization, the set of resources may have to be adapted.
2.
Policies: The maintenance organization model must be able to describe the maintenance policy applied at each location. Maintenance policies describe rules such as acceptable wear of a component before replacement, or a minimum level of spares to keep in stock. Again, it is expected that the process of adapting the model to an actual organization will involve identifying a specific set of policies suitable to represent the organization being modeled.
3.
Distribution channels: Each location will have one or more distribution channel connections to other locations, through which resources can be transported. Each distribution channel will be associated with a channel-specific lead-time. In a scenario where an actual maintenance organization is being modeled, capacity constraints and other distribution aspects may have to be added.
4.
Information: Each actor in the maintenance organization makes decisions based on their individual view of the current status of the organization and its components. The actors view depends on the information available to the actor at the time the decision is to be made. Discrepancies can occur in the information available to different actors due to limitations in the available means of communication or due to information sharing policies. The maintenance organization model must thus be able to represent the possibly unique information available to each actor.
5.
Communication channels are different from distribution channels in a number of ways. A prominent feature of communication channels is that they may extend to individual units of equipment, if these are equipped with a telecommunicating maintenance monitoring solutions . Communication channels are typically not associated with lead-times in the same way that distribution channels can be. Rather, communication channels may be subject to polling intervals or purposely delayed communications. Depending on the scenario being modeled, bandwidth limitations may be relevant to include in the communication channel model.
6.
Evaluation: It must be possible to use the model to calculate estimated availability and costs in relation to risk.

It is worth noting that the actual physical location of equipment and other components of the organization is not required to enable the model to evaluate availability, cost and risk. It is sufficient to have information about the characteristics of the distribution and communication channels that connects the different parts of the maintenance organization. This is beneficial in cases where a customer to a maintenance support provider may not be able or willing to share the specific locations of equipment, for example in public-private partnerships in the defense industry.

An organizational level model spans multiple equipment units, as well as other things such as spare equipment components, facilities, staff, etc. The proposed equipment reliability in Section 2.2 can be leveraged to provide information about equipment behavior regarding availability and risk. These are characteristics that are also required from the maintenance support organization model. The following additional maintenance organization model functionality is here identified as required to exploit the equipment reliability model capabilities in the organizational context:

7.
The proposed equipment reliability model contains information describing the time required to perform maintenance of each component, the so called mean-time to repair (MTTR). The specified MTTR is based on the assumption that the right spares, equipment and staff is available. An organizational model needs the ability to add dynamic delay and cost depending on the location of the equipment. The delay will depend on whether the right resources are actually available at the location of the equipment, providing a more realistic view of the aggregated performance of the fleet of equipment. These aspects were taken into account in Section 2.2.3, where the setup-cost, C0, and setup-time, T0, were included as part of the equipment specific maintenance event model.
8.
Usage and environmental data from multiple equipment units must be possible to collate and use to increase the amount of data available for estimation and improvement of reliability model parameters. These effects were discussed in Section 2.2.5, and illustrated in Figure 2.7 and Figure 2.8. Including the data aggregation functionality in the organization model allows the effect of improving the equipment model in terms of total system cost and availability to be studied.
9.
Resource tracking on equipment component level is required to enable non-perfect maintenance to be performed. Non-perfect maintenance occurs when a component is replaced with a component that has already been used, typically in another equipment unit.

2.3.2 Proposed Organization Model

A maintenance support organization can be described as a network of actors, each with their own authority to respond to their perception of the situation. Actors can consume or shift resources, such as spares, within the network depending on location and physical availability. Information is another commodity that is communicated to the different actors in the model, depending on available communication means and information sharing policies. Maintenance operations thus involve complex activities and decision-making on multiple organizational levels that are distributed in time and space. Agent-based modeling appears appropriate under these circumstances (Lim and Zhang 2003). A study of the feasibility of analyzing maintenance strategies using agent-based simulations has concluded that agent-based modeling, combined with other methods and simulation techniques, has a high potential to realistically model large and complex maintenance systems even with limited mathematical efforts (Kaegi, Mock, and Kröger 2009).

In this section, an agent-based model of the maintenance support organization that captures the aforementioned organizational structure is proposed. The problem is decomposed into different types agents and objects that can be interconnected such that they form a representative model of the real maintenance support organization of interest. The representation of the real organization is assumed to be readily available to the tactical level planner.

The differentiation between the terms agent and object is sometimes ambiguous. The following definitions, as used by Kaegi, Mock, and Kröger (2009), are adopted in this text:

Object
Defined by its identity, state and behavior.
Agent
Objects with extended capabilities. These capabilities embrace rules of behavior, autonomy, cooperation, mobility, memory, learning abilities, among others. Cooperation, which is considered as a core capability of an agent, comprises perception, action and communication.

Interface to the Equipment Reliability Model

The proposed equipment reliability model presented in Section 2.2.3 has four parts; the model structure, a maintenance event model, a failure rate model and an effect of covariates model. The following object-type components constitute the connection between the proposed organizational model in this section, and the proposed equipment reliability model. In fact, some aspects of the equipment reliability model are implemented as part of the organization model; namely the model structure and the maintenance event model. Interfaces are provided against the failure rate model and the effect of covariates model.

Equipment Component Object
Each equipment component object describes an instance of a type of component used in one or more types of equipment units. The instance holds a reference to information about the type of component, with associated type specific information such as failure rate, effect of covariates, cost and mean time to repair (MTTR). It also tracks information about the specific component instance it represents, such as its usage history and current state. The equipment component objects encapsulates the interface towards the failure rate model and effects of covariates model described in Section 2.2.3. A functioning equipment component object which is not currently part of an equipment unit object can be referred to as a spare.
Equipment Unit Object
Each equipment unit object describes an equipment unit, consisting of a number of equipment component objects. The object tracks the current state of the equipment unit it represents, and is also responsible for keeping the associated equipment unit component objects it consists of up to date with their current usage history. The equipment unit object implements the model structure component of the equipment reliability model from Section 2.2.3.

Physical Layer

The proposed maintenance organization model can be represented as a graph, or rather, two separate graphs, layered on top of each other. One graph describes physical locations and the transportation of physical objects between locations, forming a graph structure with locations as nodes and the channels for transportation as edges, see Figure 2.9. The other layer describes the flow of information, and is discussed further below.


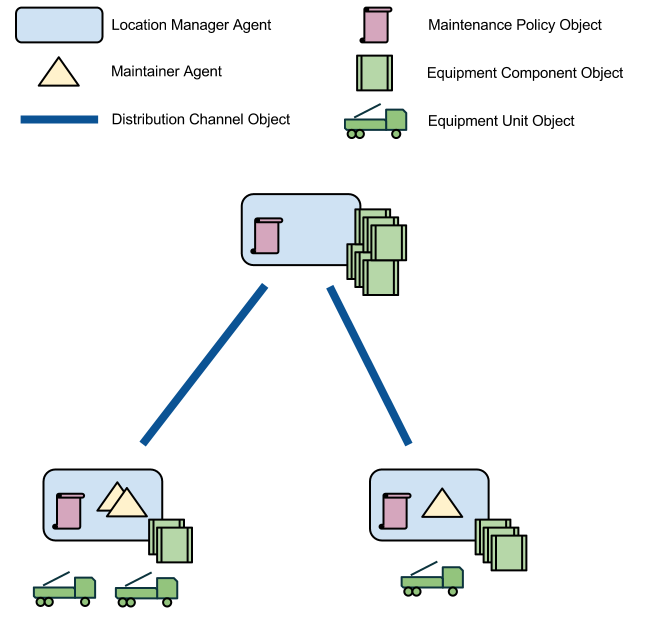

PIC


Figure 2.9: Graph depicting the physical layer of an example organization model. Three location manager agents are present, with associated maintainer agents and objects, interconnected by distribution channel objects.

At least two types of agents can be identified in the maintenance support organization, maintainer agents, which perform equipment level maintenance, and location manager agents, which makes decisions on the transportation of components and assigns work to maintainer agents.

Location Manager Agent
Location manager agents represent decision makers at physical maintenance facilities. A facility can be a work-shop responsible for the maintenance of a number of equipment units, or it may be a distribution center depot or a larger maintenance facilitiy capable of delivering maintenance to large number of equipment units. Location manager agents makes decisions on requests of components from upstream locations, deliveries of components to downstream locations, and assignment of available components and equipment units to maintainer agents.
Maintainer Agent
Maintainer agents are the agents that perform actual maintenance actions on the equipment units. They respond to maintenance requests and perform replacement of equipment component objects on equipment unit objects. Maintainer agents make decisions on which of the available spares to use for what particular maintenance action, and in what order.

So far we have described the nodes of our physical layer graph in the form of location manager agents, each of which can have a number of associated maintainer agent workers for the performance of maintenance on equipment unit components. Two more object-type components are needed to complete the physical layer:

Distribution Channel Object
Distribution channel objects form the edges in the physical layer graph representation of the maintenance organization model. The distribution channel object describes the particulars of a specific means of shifting equipment component objects from one location to another; required time, associated cost and capacity limitations if any.
Maintenance Policy Object
Maintenance policy objects encapsulates the rules used by location manager agents and maintainer agents to guide their decision making. The primary purpose of this type of object is to parametrize the maintenance organization model to enable evaluation of different maintenance policies. A maintenance policy is associated with each location to guide the agents who operate there.
Information Layer

The information layer is the second of the two layers in the graph representation of the maintenance organization model. Database objects form nodes representing locations where information is stored, connected by communication channel objects that form the edges of the graph. Figure 2.10 illustrates the information layer graph, overlaid on the physical layer graph from Figure 2.9. To represent the information exchanged between databases, an information object is used.

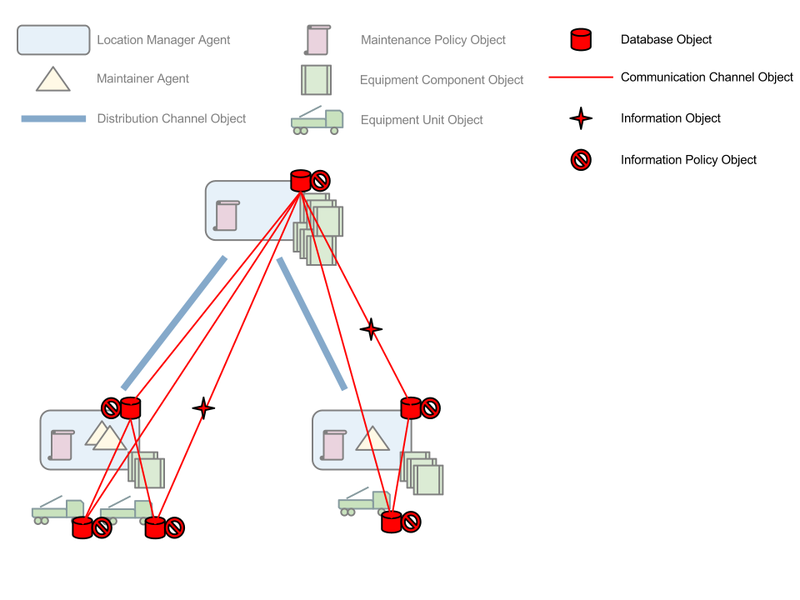

PIC


Figure 2.10: Graph depicting the information layer of an example organization model, overlaid on the grayed out physical layer from Figure 2.9. The graph shows the different places where database objects exist, and the paths available for information objects to flow between them in communication channel objects.

The flow of information within the organization will affect, for example, the uncertainty regarding component reliabilities, and may also provide additional information upon which maintenance policy decisions can be made. For example, a location manager agent in the back of the supply chain may decide to proactively order spares rather than wait for orders from the downstream locations, based upon information available directly from the maintained equipment at the front of the supply chain. The flow of information, and representation of information available to each agent, is modeled by the following object-type components:

Database Object
Database objects forms the nodes in the information layer graph, and stores all information known at the point in the model where the database is located. It contains information about equipment component types, for example failure rates and mean time to repair. It also holds information about the number of spares available at upstream locations, and the state of equipment on downstream locations. Not all information is available at all locations. Database objects allows modeling of the knowledge discrepancies that can occur between actors in a maintenance organization depending on the available means for communication and the applied information handling policy.
Communication Channel Object
Communication channel objects form the edges of the information layer graph, representing the available means of communicating information. Wireless communication channels may be available on individual equipment units, enabling monitoring data to be shared from on-board database objects to maintenance location database objects on a frequent basis. Other channels may be once-a-day satellite communications or even information download in connection with maintenance. Each of these channels have different characteristics of bandwidth and latency, which is modeled by this object.
Information Object
Information objects constitute an entity which will reduce uncertainty, and thus have the potential of reducing cost and risk, and increasing the availability for the receiver of the information. Not all information objects may be communicated through all communication channel objects depending on bandwidth limitations. An information object simply encapsulates the specific information shared between database objects.
Information Policy Object
Information policy objects are rule-sets that dictate what information is to be shared with whom, and through what channels. The primary purpose of this type of object is to parametrize the maintenance organization model to enable evaluation of different information sharing policies. An information sharing policy is associated with each database object, determining how the information contained is to be communicated.
Evaluation Module

A solution is needed to be able to evaluate the performance of the modeled maintenance organization over a simulated period of time. In this proposed organization model, the evaluation functionality is provided through an evaluation module which is referenced throughout the organization model framework. Evaluation data is the collected during the simulation by letting any object which incurs costs to notify the evaluation module, and analogously for availability effects. At the end of the simulation, the result can be evaluated by querying the evaluation module.

The risk level is assessed by running the same simulation multiple times with different random number series driving the simulation, and then analyzing the combined result sets using well known statistical methods. These aspects are further discussed in Section 2.4.

2.3.3 Implementation

To examine the viability of the proposed modeling approach, a proof of concept implementation has been made, covering part of the proposed organization model features. The implementation consists of a framework with utilities for modeling, as well as a sample model built using that framework.

Organization Model Framework

The proof of concept organization model framework has been implemented using the Python programming language. It is designed using object oriented programming such that classes are made available for each of the implemented agent- and object-types in the proposed organization model. The proof of concept implementation does not cover the proposed information layer and associated objects. A brief description of each class that implements an agent or object can be found in Table 2.2.

Agent/Object

Framework Class

Description

Equipment Component Object

EquipmentComponentType

Objects of this class describe common characteristics of a type of equipment component. These characteristics consists of component cost, mean time to repair and failure rate information. Since the proof of concept implementation does not have the information layer proposed in Section 2.3.2, the interface towards the failure rate model and effects of covariates model components of the proposed equipment reliability model are not implemented. Instead, a basic Weibull distribution is substituted to describe the failure rate, while the effect of covariates is ignored.

EquipmentComponentObject

Each instance of this class represents a single physical equipment component. Each instance of this type is associated with an instance of the equipment component type class. It also tracks how many hours the component has been in use, whether it is in operational status and whether it is new or used. The new or used tracking is employed to determine when to incur component costs. In this proof of concept implementation of the framework, component costs are assumed to be incurred as soon as a component is taken into use. The practical equivalent would be that all components are kept in consignment storage until fitted on an equipment unit.

Equipment Unit Object

EquipmentUnitType

Instances of this class describe common characteristics of a type of equipment unit. In this implementation those characteristics are limited to a list of equipment component type instances, and information about how many instances of each component type that can be found on the represented type of equipment unit.

EquipmentUnitObject

Each instance of this class represents a single physical equipment unit. Each object instance is associated with one or more equipment component objects, modeling the components of which the unit is built. It is also associated with a single equipment unit type instance, describing which kind of system the equipment unit is representing. The class provides functionality for determining whether a unit is operational, whether it needs maintenance according to a given policy and usage tracking functionality. A limitation in the current proof of concept framework is that equipment units are assumed to be in constant use while in a functioning state. This may be fine for some types of equipment units, while inadequate for others.

Location Manager Agent

LocationManagerAgent

Each instance of this class represents the maintenance decision making associated with a particular location in the maintenance organization. The typical decision making made by this type of agent is inventory management - ordering and delivering spares to other location agent instances. In this proof of concept implementation, no effort is made to collate requests for- and deliveries of spares. It is also responsible for checking the maintenance status on any equipment units associated with the location the instance represents. Outstanding maintenance gets assigned to available maintainer agents. If no unused spares are available to perform corrective maintenance, equipment components which have been replaced in preventive maintenance, but that are still functioning, will be used as spares. This means that imperfect maintenance may occur in the model.

Maintainer Agent

MaintainerAgent

Each instance of this class represent a maintenance engineer, able to perform maintenance of a single equipment unit object at a time. The maintainer agent is assigned a unit and a set of spares by the location manager agent. This agent then decides on the order and priority of components to be maintained. It keeps track of costs incurred due to maintenance work, and the time it takes to complete the maintenance operations of an assigned equipment unit.

Distribution Channel Object

DistributionChannelObject

In this proof of concept implementation of the maintenance organization model framework, each instance of this class describes a directed edge symbolizing a unidirectional transportation route from an upstream location to a downstream location. The object keeps track of lead-times and costs incurred during transport of equipment components. Multiple transports can occur in a single distribution channel instance simultaneously, and no capacity limitations are implemented.

Maintenance Policy
Object

MaintenancePolicyObject

An instance of this type of class encapsulates the rule-set used by a location manager agent or a maintainer agent to guide their decision making. Instances of this type of object are shared among the agents associated with a particular location in the current proof of concept implementation.

Table 2.2: Agent/object mapping to organization model framework classes and descriptions.

The maintenance organization model framework also provides three supporting classes associated with resource tracking and evaluation:

EvaluationScore
which provides interfaces for instances of the object and agent classes listed in Table 2.2 to report cost and availability data. The collected data can be queried from this variable during and after a simulation run.
EquipmentComponentObjects
which constitutes a list of all equipment component objects in the model, and has a factory method for creating new equipment components with unique id-numbers.
EquipmentUnitObjects
which, similar to the EquipmentComponentObjects class, provides a list of all equipment units that exist in the model, and has a factory method for creation of new equipment units with unique id-numbers.

Full implementation details of the proof of concept organization model framework are available in Section 3.3.

Organization Model Example

This section shows how a small maintenance organization model can be built using the maintenance organization model framework presented above. The model constructed here is similar to the model presented in Figure 2.9. It consists of three location manager agents, representing one upstream spare repository with no associated equipment units, and two downstream locations that are connected to the upstream location through distribution channels. Resource tracking and evaluation is supported through application of the three supporting classes. The here implemented model is designed to be useful to study the effect of different maintenance policies in the modeled organization.

The first step is to define the different types of components available to our model. In this case it is done through the creation of a new class called ComponentTypes:

  class ComponentTypes:
      A = OrgModel.EquipmentComponentType("A", 200, 1.5, 2, 10000)
      B = OrgModel.EquipmentComponentType("B", 400, 1.5, 4, 5000)
      C = OrgModel.EquipmentComponentType("C", 600, 3.0, 6, 40000)

Each component type is modeled using the framework class EquipmentComponentType. The first argument to the constructor is a label for our type of component. The following two are the scale and shape parameters for the Weibull failure rate distribution substituting the interface to the corresponding equipment reliability model components. The last two arguments are the MTTR specified in hours, and the component cost respectively.

The next step is to describe the equipment unit types occurring in the model. In this case there is only one, but for consistency it is implemented in a new class called UnitTypes.

  class UnitTypes:
      ARCHER = OrgModel.EquipmentUnitType("ARCHER",
                                          [(1, ComponentTypes.A),
                                           (2, ComponentTypes.B),
                                           (2, ComponentTypes.C)])

The framework class EquipmentUnitType is used to define the equipment type. It takes two arguments, a label and list of tuples detailing the component types and the number of occurrences of each component type.

Before any objects are instantiated, the evaluation score keeping and the resource tracking objects are created:

  g_evaluationScore = OrgModel.EvaluationScore()
  g_components = OrgModel.EquipmentComponentObjects(g_evaluationScore)
  g_units = OrgModel.EquipmentUnitObjects(g_evaluationScore,g_components)

The three framework supporting classes are used and instantiated with self explanatory variables.

A maintenance policy object for the first downstream location is then constructed. It is here done in two steps; a dictionary describing the policy is constructed which is then used to instantiate the framework class MaintenancePolicyObject:

      ComponentTypes.A : { "Max Stock Level" : 5,
                           "Reorder Level"   : 2,
                           "Preventive Hazard Threshold" : 0.008},
      ComponentTypes.B : { "Max Stock Level" : 5,
                           "Reorder Level"   : 2,
                           "Preventive Hazard Threshold" : 0.008},
      ComponentTypes.C : { "Max Stock Level" : 5,
                           "Reorder Level"   : 2,
                           "Preventive Hazard Threshold" : 0.005} }

  policy = OrgModel.MaintenancePolicyObject(policyDict1)

A set of equipment units is then constructed from newly made equipment components. This set of units will be used to associate the units with the location.

  units = [ g_units.new(UnitTypes.ARCHER),
            g_units.new(UnitTypes.ARCHER),
            g_units.new(UnitTypes.ARCHER),
            g_units.new(UnitTypes.ARCHER) ]

As can be seen, the factory method new in the resource tracking object g_units is used to create the equipment units.

Maintainer agents are then created:

  maintainers = [ OrgModel.MaintainerAgent("M1", g_evaluationScore, 200),
                  OrgModel.MaintainerAgent("M2", g_evaluationScore, 200) ]

The constructor of the framework class MaintainerAgent takes three arguments; a label, a reference to the score tracking object and the cost the maintainer agent incurs while performing a maintenance action.

The last piece missing before a location manager agent can be constructed is the initial set of spares available at the location:

  spares = []
  for k,v in policyDict1.iteritems():
      n = v["Max Stock Level"]
      while n > 0:
          spares.append(g_components.new(k))
          n -= 1

The factory method new of the global resource tracking variable g_components is here used to create an initially full (as dictated by the maintenance policy) spares repository.

Finally, the location manager object can be created using the data sets detailed above:

  location1 = OrgModel.LocationManagerAgent("L1",
                                            g_evaluationScore,
                                            spares,
                                            units,
                                            maintainers,
                                            policy,
                                            1.0, 10.0)

The last two arguments to the framework class LocationManagerAgent constructor are the setup-times required for preventive and corrective maintenance. It is in this model assumed that planned preventive maintenance has a shorter setup time than corrective maintenance needed due to a breakdown while the equipment unit is being used in the field. The two remaining locations, i.e. the upstream location and the second downstream location are created similarly.

The distribution channels are constructed using the framework class DistributionChannelObject:

  channel1 = OrgModel.DistributionChannelObject("DC1",
                                                g_evaluationScore,
                                                upstream_loc,
                                                location1,
                                                72.0,1000)

The first two arguments to the constructor is a label and a reference to the score keeping object, followed by the upstream and downstream locations of the distribution channel. The last two arguments are the lead-time in hours required to transport equipment components through the channel, and the cost per hour of transportation in this channel.

The main simulation loop in this example is run for a simulation period of 30-days, i.e. 720 hours:

  t = 0
  dt = 1.0
  while t < 720:
      location1.step(dt)
      location2.step(dt)
      upstream_loc.step(dt)
      channel1.step(dt)
      channel2.step(dt)
      t += 1

The chosen resolution of the simulation here was 1 hour. Smaller simulation time steps yield more accurate results at the expense of computation time. In this example, parameters have been set using whole hours, such that a simulation step of 1 hour would be suitable.

The final step is to print the evaluated results from the simulation:

  print g_evaluationScore.toStr()

Which in one example run yields:

  Evaluation Score
  ----------------
    Maintainers: 96200
    Components:  1370000
    Transport:   591600
  Total cost:    2057800
    Available hours:   3829
    Unavailable hours: 491
  Overall availability: 88%

The random function used to simulate outcomes in the maintenance organization model framework is the random-function from the random package delivered with Python. It is a so called Mersenne twister algorithm (Matsumoto and Nishimura 1998) which, while producing a uniformly distributed number sequence, is entirely predictable. This means that by controlling or setting the random seed before entering the simulation, entire simulation runs can be reconstructed for further study and post mortem analysis if required. The full source code of this organization model example can be found in Section 3.3.

2.3.4 Discussion

In this section, the requirements on the maintenance organization model identified in Section 2.3.1 are revisited and compared against the proposed solution and proof of concept implementation in Section 2.3.2 and Section 2.3.3 respectively. This discussion is then followed by some comments on the applicability of the proposed modeling approach.

Requirements Fulfillment

The first requirement, Requirement 1, identified the need for the model to represent different kinds of physical resources. Maintenance staff, equipment units and equipments components were explicitly listed. This requirement is met by the equipment component object, equipment unit object and the maintainer agent object proposed in Section 2.3.2.

Requirement 2 described the need to be able to represent maintenance policies, and the aspects of preventive replacement thresholds and inventory reorder levels were explicitly mentioned. This requirement is met by the maintenance policy object in the proposed maintenance organization model in Section 2.3.2.

Requirement 3, distribution channels, discussed the need to be able to represent means for resource transportation. The ability to represent lead-time was explicitly mentioned. This requirement is fulfilled by the distribution channel object proposed in Section 2.3.2.

Requirement 4 discussed the need to represent information, as different information may be available to different actors in the maintenance organization during a simulation. This requirement is met through two proposed objects; database objects that encapsulate all information available at a specific point in the maintenance organization, and information objects which describe information deltas that can be communicated between database objects using information channel objects.

Requirement 5 identifies the need to represent different communication options available within the maintenance organization. Communication channels are provided by the communication channel object proposed in Section 2.3.2, fulfilling this requirement.

Requirement 6 describes the need for a means of evaluating model performance in terms of availability, cost and risk. This requirement is met by the inclusion of an evaluation class as proposed in Section 2.3.2 and exemplified in Section 2.3.3.

Requirement 7 concerns the interface towards the proposed equipment reliability model, and specifically the ability to include setup-costs and setup-times when bringing in an equipment unit for maintenance. This requirement is met through a combination of different effects in the location manager agent and the maintainer agent model components proposed in Section 2.3.2. First of all, the location manager will keep a piece of equipment needing corrective maintenance waiting until spares are available to fix the problem. This implies a dynamic setup-time. Secondly, the maintainer agent will need a setup-time depending on the nature of the maintenance to be performed, preventive or corrective, which will incur costs for the maintainers time as well as adding setup-time to the maintenance action.

Requirement 8 deals with the ability to collate usage and environmental data from multiple equipment units. The purpose of the information layer in the proposed organization model is to fulfill this requirement. As such it has not been fulfilled in the proof of concept implementation, of which the information layer is not a part, but can be fulfilled using the proposed information layer objects.

Requirement 9 specifies that resource tracking must be possible to enable non-perfect maintenance. This is enabled through use of the supporting classes in the proposed framework to create a global resource tracking instance, named g_components in the proof of concept implementation, and has been shown to work in the example model provided in Section 2.3.3.

Applicability

Decision support systems needs to be able to support the decision maker with accurate information, based on historical data on the equipments previous operation, the actual status such as sensor signals and built-in tests, and expected trends or events that can be forecast with the use of simulation (Vin, A. H. C. Ng, et al. 2008). Given the proposed maintenance organization model discussed in the previous sections, a number of data requirements can be identified for this modeling approach to be applicable to an actual maintenance organization modeling scenario.

There is a conceivable risk that with too much uncertainty going into the model, it can be perceived as behaving chaotically and thus become useless to try and derive predicted outcomes from. This could occur if to little is known about component reliability functions, effect of covariates, lead-times, expected repair-times, etc. The simulated outcomes of a model under these circumstances may exhibit significant variance. For example, there is no point in a simulation result that says little more than that the availability will be between 0% and 100%.
